18 inch Thermocouple Angle Assembly

Home > Products > THERMOCOUPLES And THERMOCOUPLE ASSEMBLIES > CERITE III Thermocouple Assemblies > 18 inch Thermocouple Angle Assembly

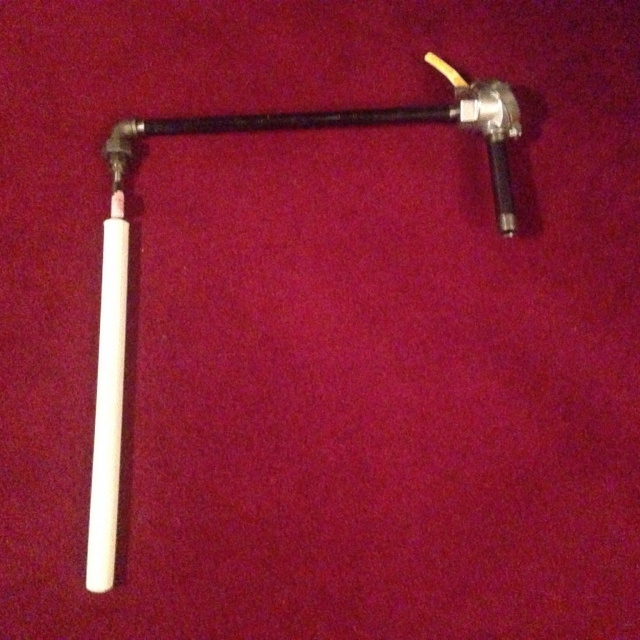

18 inch Thermocouple Angle  Assembly

Part Number: 18 Complete Assebly
Size: 18 inch assembly
Availability: 3-5 days

The CERITE III thermocouple assembly comes preassebled with a "REPLACEABLE "CERITE Thermocouple Assemblies for Molten Aluminum and Zinc. The unitized construction combines a Cerite protection tube with an integral thermocouple element to form a COMPLETE THERMOCOUPLE . Non-Wetting Cerite is cast around a 1/4" NPT steel pipe, which contains an integral 14 gauge ceramic insulated thermocouple element, and the fiberglass-insulated leads. The high alumina content (85%) and a low content of silica (4%) make the Cerite protection tubes very low contamination.

The Cerite III is attached via 90 degree pipe union joint, this is connected to a cold leg, then attached to a terminal head with a quick disconnect for ease of replacement. The union joint allows for "hot leg" or Thermocouple (CERITE III) to be replaced without twisting of the connection wires. The replacement is as simple as opening union joint unscrewing the thermocouple then disconnecting two wire from terminal head

The replacment 18 inch thermocouple is only $ 53.00 each.

The unit has a 18 inch CERITE assembly and a 18 inch cold leg.

Available in 12,18,24, 36 inch hot and cold leg and any size CERITE III can be used.

"

Weight: 20.00 lbs

Price: $205.00
