Compact Hydrogen Tester

Home > Products > TESTING EQUIPMENT FOR MOLTEN ALUMINUM > Compact Hydrogen Tester

Part Number: ALU Compact II
Size: 680 x 460 x 430 mm
Availability: 2-3 weeks

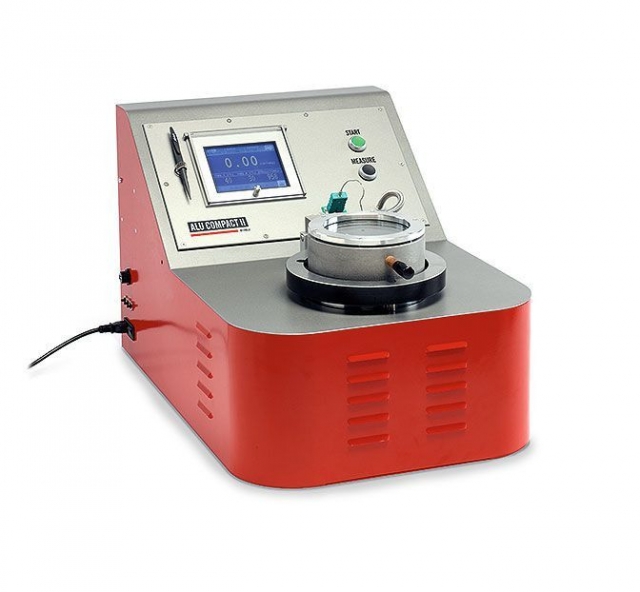

The ALU COMPACT II is a hydrogen measuring device which distinguishes itself due to its compactness, easy operation and speed. Hydrogen measurement can be completed in less than one minute, that is why the ALU COMPACT II alongside the ALU SPEED TESTER is the fastest device available on the market. In addition no warm up time is needed for this device. Hydrogen measurement with the ALU COMPACT II is based on the first gas bubble principle of Y. Dardel.

The device has USB as standard interface, storage of measuring results on device, display of results on a colour display, and setting parameters with touch screen. In addition, with our software, data can be graphically displayed, statistically evaluated, and transferred into other programmes.

Additional Information:

• Serial Interface: USB
• Net Weight (depending on additions): 46 - 48 kg
• Measuring Range: 0.05 - 9.99 ccm/100g
• Reproducability: 0.02ccm/100g
• Resolution: 0.01ccm/100g
• 230 VAC or 115 VAC

The net weight is (depends on the options) between 46 and 48kg.

The gross weight is between 62 and 65kg

Weight: 144.00 lbs
