225 Lbs. Black Box Aluminum Hand Tilt Gas Fired Furnace

Home > Products > ASSAYING FURNACES > 225 Lbs. Black Box Aluminum Hand Tilt Gas Fired Furnace

225 Lbs. Black Box Aluminum Hand Tilt Gas Fired Furnace

Part Number: Black Box 225
Size: 250 Hand Tilt
Availability: 2-4 weeks

These units are SIMPLE and EASY .

Used for quick melts such as assaying scrap or most non ferrous Metals.

Just load the scrap or charge, hit the on button and in no time you will have molten metal and with a simple hand crank you can pour into any type mold.

400,000 BTU ,  requires only 1/2 lbs natural gas or propane.

110 volt.





We are pleased to offer you our Tilting Style “Black Box” assaying furnaces.

The furnace is designed around a number 225 crucible that holds approximately 225 pounds of aluminum. (Additional sizes available)
400,000 BTU’s Natural Gas
115 Volt electrical

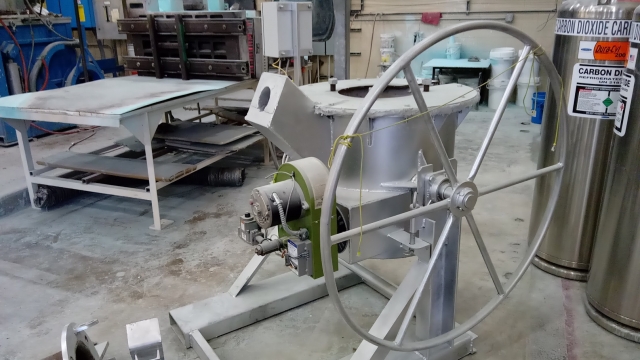

The furnace consists of a rolled steel shell with a top plate, tilting mechanism, and is well insulated.
The lining helps keep the furnace efficient and allow for a FAST heat up and recovery. The furnace frame is 36” x 36”. The furnace itself measures 32” x 30”
The burner system is a self-contained unit comprising of blower assembly, firing head, ignition system, flame safeguard and control panel console.  The burner system will attach directly to the furnace and requires 115V electrical supply, gas train piping, and connection to gas service.
The control panel has been specified to operate one gas fired burner solenoid valve operating at 115 VAC.  The unit includes a temperature controller and a high limit control. The panel can be directly mounted on the furnace or remotely mounted on a nearby wall or stand.





Weight: 2500.00 lbs

Price: $

Quantity:
