Dipstick Thermocouple Type K

Home > Products > HANDHELD PYROMETERS > Dipstick Thermocouple Type K

Dipstick Thermocouple Type K

Part Number: Type K Dipstick System 55"
Size: 55"
Availability: 5-7 weeks

Type K Dipstick System
55", 90°, °F

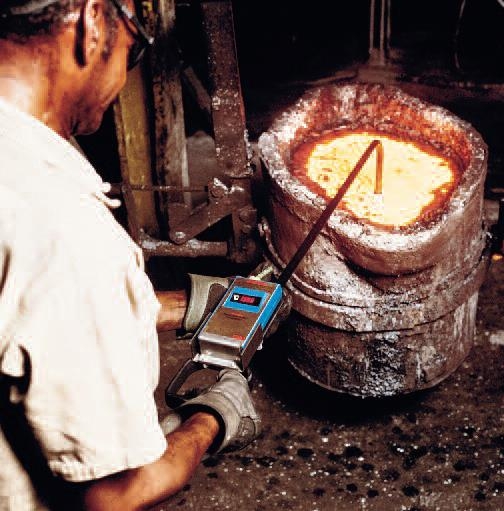

Rugged reusable chrome-tip with Type K thermocouple measures nonferrous metals such as brass, bronze and aluminum, and enclosures such as furnaces, stacks, and ovens. It can be used for hundreds of dips, depending on composition of process materials. 55" length dipstick with right angle bend, meter, chrome/iron tip 1/2" diameter x 8" long, °F.

• TC840 Type S Range 3200°F / 1770°C
• TC850 Type K Range 2500°F / 1370°C
• Measure ferrous and nonferrous molten metals
• User-selected lance lengths and expendable or reusable tips
• Bright, large displays make readings easy to see
• Maxi-Temp circuit holds peak temperature
• Resolution 1°F/°C; system accuracy ±0.3% or reading
Wahl’s family of Heat-Prober Dipstick high-temperature
monitors combine high accuracy, fast-response,
comfort, and convenience in rugged, reliable systems.
Special Wahl “dip tip” Type K and S thermocouples are
designed to measure molten metals and other high
temperature processes.
All systems feature the Maxi-Temp circuit that holds
and displays peak temperature reading, even if the
expendable tips burn open. System accuracy at molten
metal temperatures with a Wahl meter and probe is
typically ±9°F with a Type S thermocouple and ±11°
with a Type K. Dipstick can be configured with any 2500/1370• TC840 Type S Range 3200°F / 1770°C

• TC850 Type K Range 2500°F / 1370°C

• TC840 Type S Range 3200°F / 1770°C

• Measure ferrous and nonferrous molten metals

• User-selected lance lengths and expendable or reusable tips

• Bright, large displays make readings easy to see

• Maxi-Temp circuit holds peak temperature

• Resolution 1°F/°C; system accuracy ±0.3% or reading

The family of Heat-Prober Dipstick high-temperature monitors combine high accuracy, fast-response,

comfort, and convenience in rugged, reliable systems.Special  “dip tip” Type K and S thermocouples are

designed to measure molten metals and other high temperature processes.

All systems feature the Maxi-Temp circuit that holdsand displays peak temperature reading, even if the expendable tips burn open. System accuracy at molten metal temperatures with a meter and probe istypically ±9°F with a Type S thermocouple and ±11°with a Type K. Dipstick can be configured with any 2500/1370 meter.

Click Here For Info On Tips









Weight: 12.00 lbs

Price: $1532.00

Quantity:
