THERMOCOUPLES And THERMOCOUPLE ASSEMBLIES

Home > Products > THERMOCOUPLES And THERMOCOUPLE ASSEMBLIES

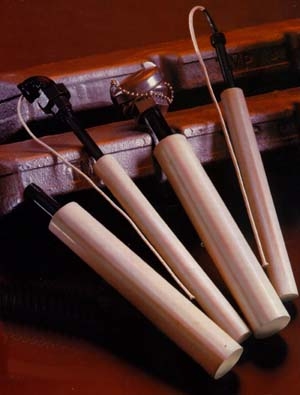

Dy-Kast Supply carries the CERITE Thermocouple Assemblies for Molten Aluminum and Zinc. The unitized construction combines a Cerite protection tube with an integral thermocouple element to form a COMPLETE THERMOCOUPLE ASSEMBLY. Non-Wetting Cerite is cast around a 1/4" NPT steel pipe, which contains an integral 14 gauge ceramic insulated thermocouple element, and the fiberglass-insulated leads. The high alumina content (85%) and a low content of silica (4%) make the Cerite protection tubes very low contaminating devices. This combination assembly is a Very COST EFFECTIVE means of measuring molten aluminum process temperatures. Available in various lengths. IN STOCK for immediate delivery.

Special thermocouple assemblies are also available to meet your requirements. Contact us for additional information.

CERITE III Thermocouple Assemblies

The CERITE III thermocouple assembly comes preassebled with a replaceable Cerite Thermocouple Assemblies for Molten Aluminum and Zinc. The unitized...

$The Cerite-III unitized thermocouples are provided with a protection tube and integral thermocouple element with 36" of high temperature (1300 deg F) fiberglass leads, and a 1/2" NPT steel male face bushing for customer's use in mounting as standard. These Cerite-III thermocouples are constructed by casting a phosphate bonded refractory material containing 85% alumina, 4% silica, and other trace elements around a 1/4" NPT steel pipe, containing an integral stainless steel sheathed magnesium oxide (MgO) insulated thermocouple element. The cast refractory material was developed for use in molten non-ferrous metals, specifically molten aluminum and zinc. It has excellent non-wetting properties allowing easy slag removal, and the small diameter provides fast thermal response to process temperature changes. These assemblies also provide good resistance to thermal shock and mechanical breakage. The refractory material is rated at 2800 deg F, however its use as a Cerite-III thermocouple assembly is generally limited to 1500 deg F maximum. Protection tube pre-heating and slow immersion into the process is recommended. Longer Lead lengths and Type J also available. Call for pricing and delivery.$

Cerite Thermocouple

The Cerite-III unitized thermocouples are provided with a protection tube and integral thermocouple element with 36" of high temperature (1300 deg F) fiberglass...

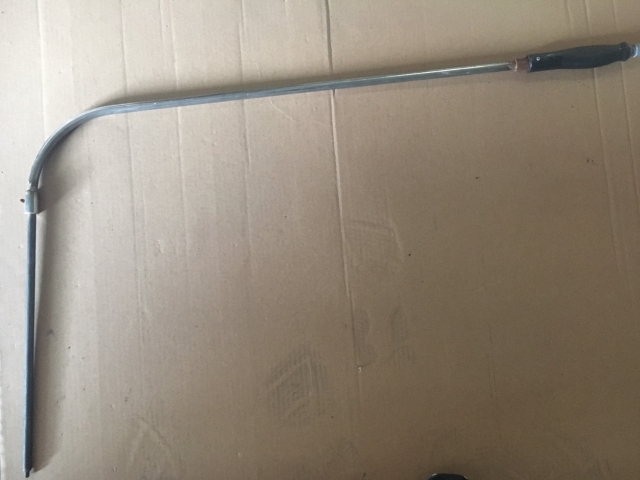

Molten Non-Ferrous Metal Lances and Thermocouple Tips

We offer a type K , 446 Stainless Steel replacement tip and or lance to be used in most non ferrous metalsThese are supplied with 43" leads and can be...

MULTIUSE THERMOCOUPLE TIPS

DYKAST Supply offers a complete line of thermocouple tips , for use with handheld pyrometers and thermometers.Type k for non ferrous metals such as Aluminum,...

Roof and Side Wall furnace Thermocouples

Dykast Supply offers a complet line of Furnacace roof and side mount thermocouples for ALL manufactures of FurnacesThe thermocouples ar one piece and easily...

Thermocouple assemblies

DYKAST offers complete Thermocouple Assemblies with Ceramic Coated cast iron protection tubes. Sylan or ceramic protection tubes.12,18,24 and 30 inch....

Bolt on Thermocouple

Part Number: DKSBOT

Availability: 3-5 Days

Rugged thermocouple, for surface mount applications, has a washer mounting surface and an overall dimension of 0.680" O.D., with a 0.260" mounting...

Price: $55.00 USD
Order

Magnetic Thermocouples

Part Number: DKSMT

Availability: 3-5 Days

Measures Surface Temperature of Ferrous MaterialsSingle or Dual 53 Newton (12 lb) Pull MagnetsJ, K, E, T Calibrations,Magnet Will Retain 90% of Its Pull...

Price: $139.00 USD
Order

Tap Hole-Plug Thermocouple

Part Number: DKS 6726

Availability: 1-5 Days

Our ceramic coated, cast iron tap hole thermocouples are an excellent method for checking the temperature at the tap hole.TAP HOLE THERMOCOUPLESExcellent...
